PEQ-15 UHP BLACK GREEN Laser IR Laser Illuminator PCB Potting SOMOGEAR (peq15-irilu-g-u-blk)

BRAND SOMOGEAR

The SomoGear AN/PEQ-15 Aiming Laser IR Illuminator (ATPIAL) is designed to be used with night vision goggles devices at night for airsoft games, milsim simulation and cosplay photography, it is most popular improved version aiming laser, it integration of co-aligned VIS and IR aiming lasers, also combined with IR illuminator, adjustable and focusable beam range, it is small, lightweight, easy to use, set the new standard in the airsoft field. SomoGear try the best to satisfy the major airsoft clubs and airsoft players.

PCB Potting is a common protective measure used by most PCBA board manufacturers to safeguard electronic circuits against heat, environmental hazards, chemicals, and impacts.

Fits for picatinny rail MIL-STD-1913
Durable polyamide material + Floating Fiber
Compatible with prototype crane mil-spec plug
Zeroable aiming laser, with clicking sounds
Focusable & adjustable IR illuminator
Rotating IR illuminator Focus Ring 288° degrees from spot to flood
IR illuminator Pulse Rate programmable
Co-aligned VIS & IR aiming lasers (at 30 meters distance they are less than 10cm apart)
Compatible all generation Night Vision Goggles
All the lens cover just an opaque cover, without diffuser function.
100% Brand New, for Airsoft use only

TECHNICAL SPECIFICATIONS
Dimensions: 4.6” L x 2.7” W x 1.6” H
Weight: 6.1 oz (172g). without battery
Battery: 3V CR123A (not include)
Battery Life: >6 Hours (under all modes)

Configuration & Functions:
Focusable/Adjustable IR Illuminator
Visible Laser (Green)
IR Laser
Co-aligned VIS & IR Laser

Package Include:
1 x PEQ-15 Aiming Laser Device PCB Potting
1 x Milspec Connector
1 x Tan Sticker
1 x Black Sticker

Remark:
NOT include the battery

SomoGear IR Illuminator Pulse Rates Operation Manual:
In addition to momentary and continuous modes of operation, the IR illuminator may be programmed to operate in pulse mode at either 1, 2, 4, 8 pulses per second.

To access the programming mode, the mode selector must be turned to the desired pulse rate within 5 seconds of pressing the FIRE button.

1. With the Mode Selector turned to the P (program) position, hold down the FIRE button, orange indicator light up.

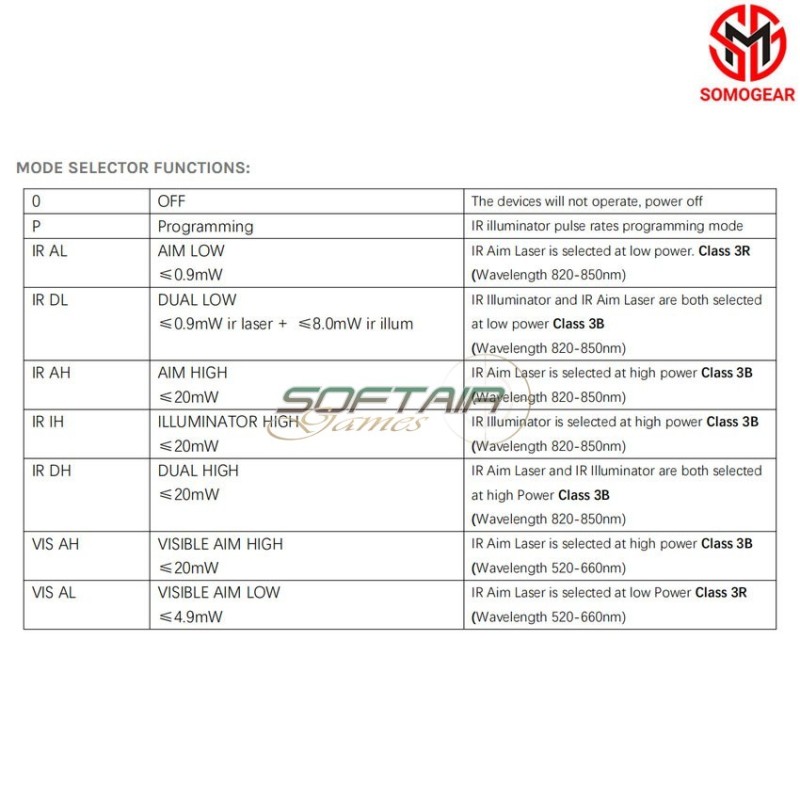

2. Turn the Mode Selector to the IR position that corresponds to the desired pulse rate as shown in Table below.
3. Release the FIRE button, the orange indicator flashing 2 times, and the pulse rate will be programmed, the set pulse rate will remain until it is programmed differently or canceled

How to cancel the Pulse Rate?
Set the rate to 0 pulse per second
