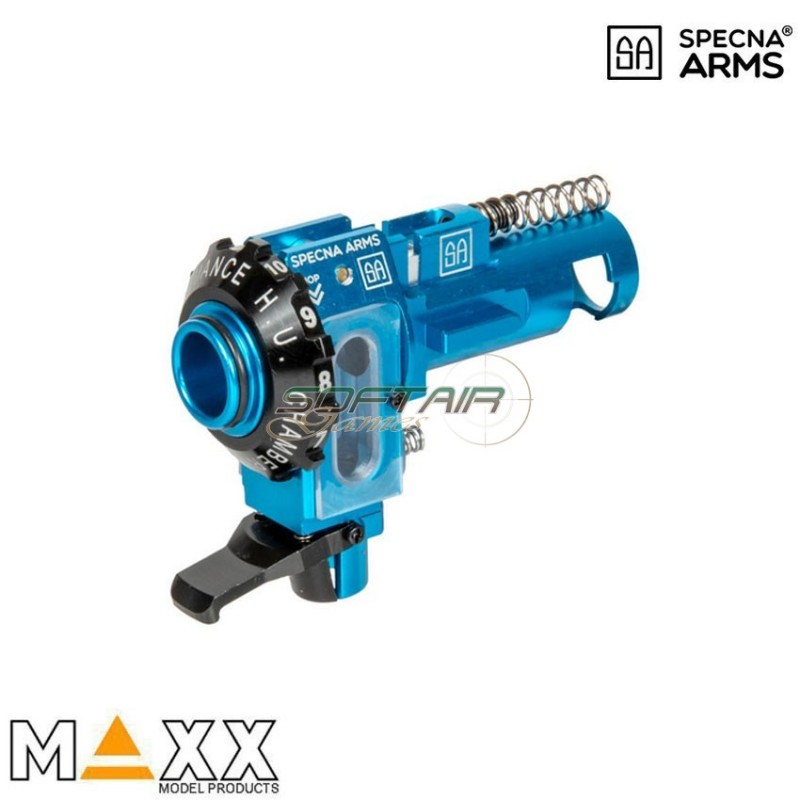

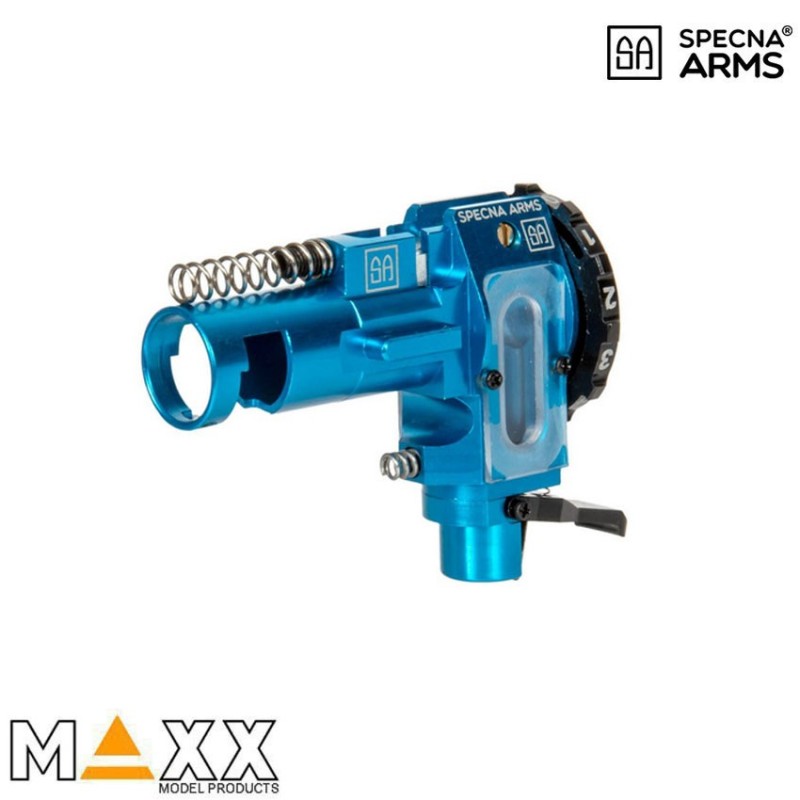

Hop Up chamber Me Pro Cnc aluminum for M4/m16 Aeg Maxx Model specna arms® (spe-08-031957)

BRAND SPECNA ARMS® // MAXX MODEL

Model with BB LATCHING SYSTEM.
Hop Up ME Group - PRO.
In aluminum, with CNC machining.
Transverse adjustment ring nut, with maximum precision.
Predisposition for led illuminator.
For Specna arms / Marui M4 / M16 series (including KRYTAC, excluding KWA).

Features:
The Hop Up was designed with BB Latching System to avoid dropping the BB after removing the magazine.
The locking system can also be opened manually to manually release the BBs.

Use a air nozzle with a length from 21.00 to 21.25 mm.

SPECIFICATION:

Length: 51 mm
Height: 37.75 mm
Hub Outer Diameter (for the gearbox): min 11 mm - max 11.5 mm
Hub Outer Diameter (for the external barrel): min 12 mm
Hub Inner Diameter (for the nozzle): min 11 mm - max 8.3 mm
Feeder Outer Diameter (for the magazine): min 11 mm - max 9.25 mm
Feeder Length (for the magazine): max 6.25 mm
Material: Aluminum 6061

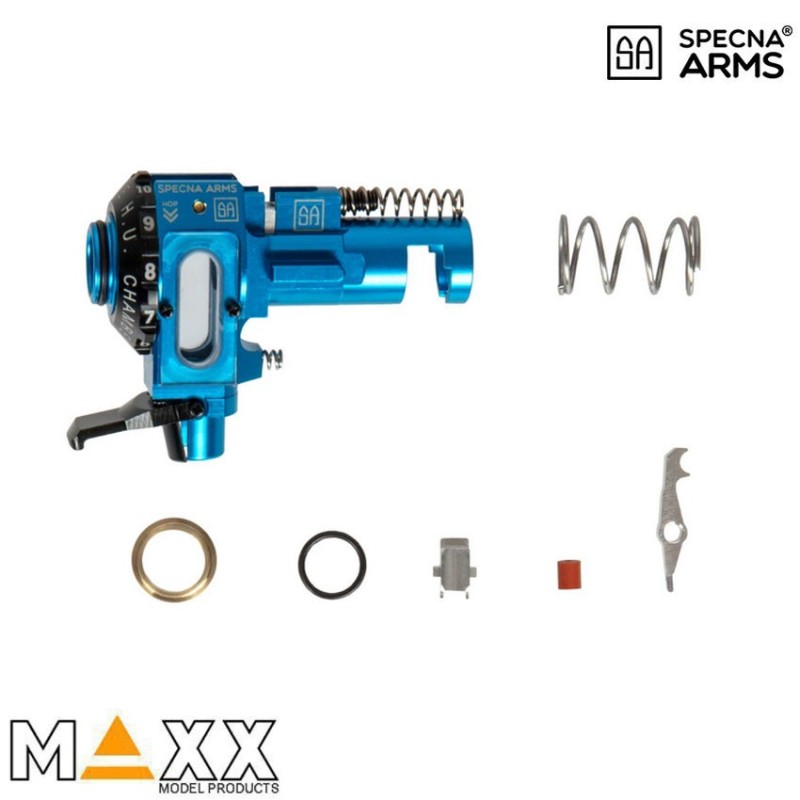

The set includes:

1 x chamber with BB Latching system
2 x transparent, vinyl cover
1 x aluminum CNC Standard-Hop arm
1 x aluminum CNC R-Hop arm
1 x silicon Standard-Hop Nub Damper
1 x silicon Rubber R-Hop Nub Damper
1 x aluminum, precise CNC Hop Concave Nub 4.5 mm
1 x aluminum, precise CNC R-Hop Concave Nub 6 mm
1 x brass, rifled CNC Slot Pin
1 x CNC Delrin Locking C-Clip
1 x brass CNC Barrel Spacer
1 x brass O-ring Spacer Holder
3 x steel compression spring
