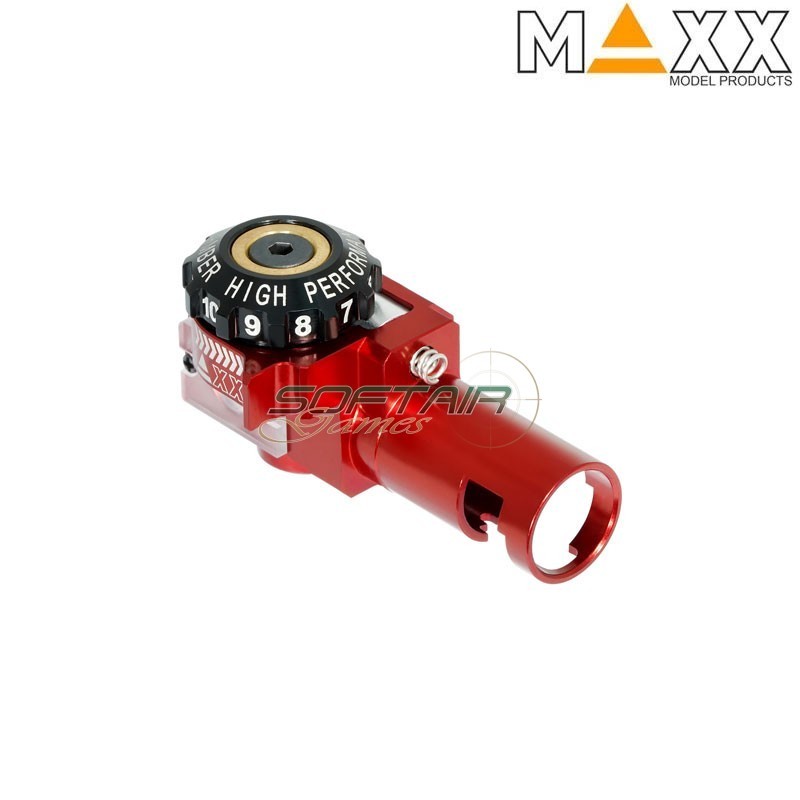

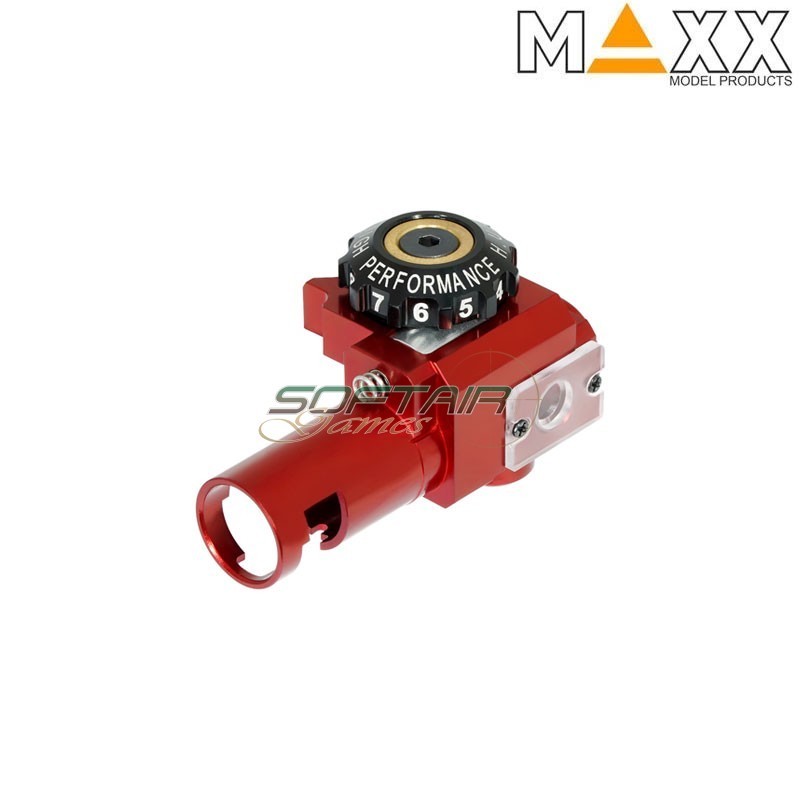

CNC Aluminum Hop Up Chamber EVO for Scorpion AEG Maxx Model (mx-hop020evo)

BRAND MAXX MODEL

Hop Up EVO Chamber Maxx Model.
In aluminum, with CNC machining.
Transverse adjustment ring nut, with maximum precision.
Predisposition for led illuminator.
For Scorpion EVO-3.

Features:
The Hopup Chamber EVO unit is wisely built with a self-centering inlet to ensure the hopup unit is inserted exactly in the center of the 11.5mm inner bore ASG EVO-3 gear box outlet without wobbling.

Use a slot pusher with a length of 18.50 mm.

SPECIFICATIONS:
Overall Length: 47mm
Overall Height: 26,25mm
Inlet Adaptor Outer Diameter (to fit into Gear Box): 11mm
Hub Outer Diameter (to fit into Outer Barrel): 12mm
Hub Inner Diameter (to fit Nozzle): 7mm
Material: Aluminum 6061

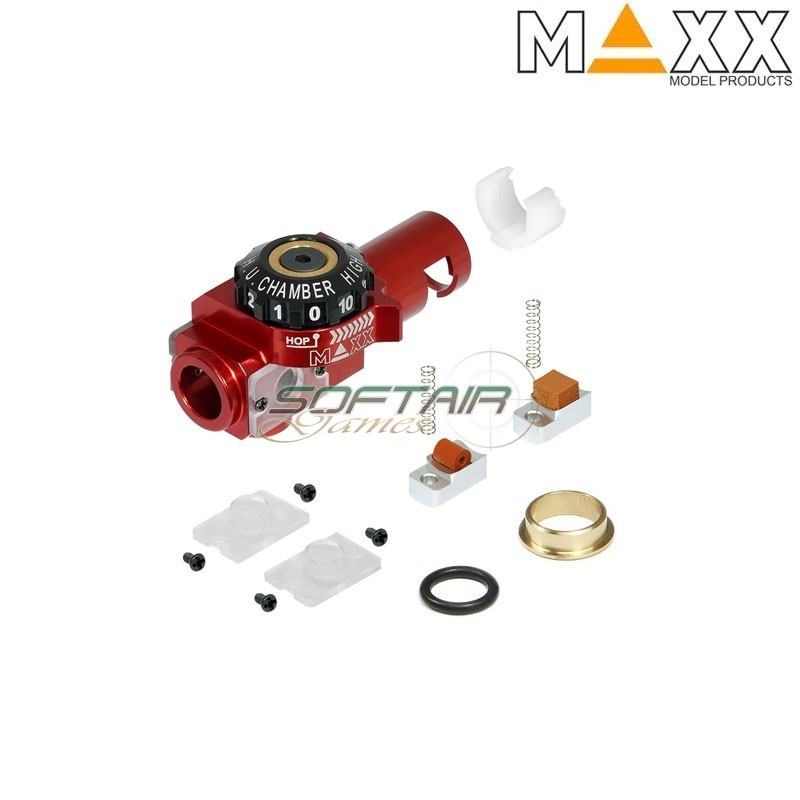

IN THE BOX:
1 x CNC Aluminum Hopup Chamber EVO unit
1 x Dual UV LED Boards and Module set (optional)
2 x Strong Clear Vinyl Cover set
1 x CNC Aluminum Soft Round Nub
1 x CNC Aluminum Soft Flat Nub (4mm) (Pre-installed)
2 x Steel Nub Spring
1 x Steel Compression Spring
1 x Brass Dial Bushing
1 x Dial O-ring
1 x CNC Precision Aluminum Rotary Dial Knob
1 x CNC Delrin Locking C-Clip
1 x CNC Brass Barrel Spacer
1 x Brass Barrel Spacer Holder O-ring
