Titan V3 Advanced Set Gate (gate-ttn3-as2)

BRAND GATE

Easy configuration via PC app, Android, macOS.
First and only mosfet to offer firmware update online.
Trigger proximity sensor with 250 possible settings.
Innovative optical sensors.
Access to statistics and rankings (with advanced firmware)
Real trigger sensitivity.
Also compatible with DSG, SSG and 19-tooth pistons.
Compatible with most 3rd version gearboxes (also CNC) without particular modifications.

GATE Control Station ™

TITAN and GATE Control Station let you have total control over your AEG. The GCS gives the possibility of:

check your replica directly from smartphone with Android and PC with Windows and macOS
simple parameter settings
firmware update and upgrade
access statistics and rankings *
run diagnostics and run reports

* in case of advanced firmware
Settings

TITAN offers you the possibility to adjust:

Fire selector mode
Pre-cocking mode
Pre-cocking boost
Burst mode
Burst
ROF Stabilization
ROF Control
Sniper Delay

Battery protection
Battery cell
Low battery warning
30-rounds limit
Cycle detection
Equalizer (dynamic trigger point)
Active Brake
Gear ratio

NOTE: The basic firmware does not support all functions
Sensors

With GCS you can easily adjust your sensors.
The trigger sensor offers 250 sensitivity settings. You can choose 1 of the 2 activation modes:

1-stage: standard
2-stage ('AUG mode'): first stage SEMI or BURST, second stage BURST or AUTO

The selector sensor offers a fine calibration of the switching point:

AK TYPE: SAFE - AUTO - SEEDS
G36 TYPE: SAFE - SEMI - AUTO
AUG TYPE: selector disabled

Statistics

TITAN allows you to control:

Rate of fire
Trigger response
Module's temperature
Motor current
Battery voltage
Number of fired BBs

Minimum, Average, Maximum
Minimum, Average, Maximum
Minimum, At this moment, Maximum
Average AUTO, Average SEEDS, MAX PEAK
Minimum, Last, Maximum
BB1, BB2, TOTAL

NOTE: the basic firmware does not support statistics
FIRMWARE

TITAN is available in 2 firmware versions: BASIC and ADVANCED. The table shows the differences between the 2 versions.

BASIC: The best for those who prefer simplicity but do not want to give up the highest quality. Cheaper version, with limited functions. It is possible to upgrade to the Advanced version.
ADVANCED: Advanced version, with all functions. It also allows access to statistics and rankings.

For the update you need to purchase the firmware at: https://gatee.eu/online-store/online-store-2/titan-advanced-editon-upgrade-detail
USB-Link

USB-Link allows you to connect GATE products with PCs, smartphones and tablets.
Tactical Programming Card

Attention: TITAN V3 requires USB-Link for the first calibration adjustment and advanced functions.

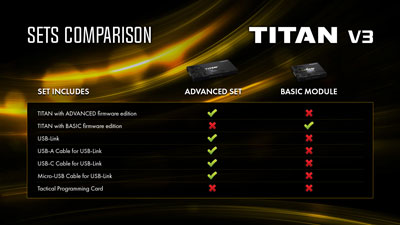

KIT CONTENT:

TITAN V3 Module with ADVANCED firmware (universal wiring)
USB-Link for GATE Control Station ™ App
USB Cables:
a) USB-A to Micro-USB (1.5m / 4ft 11in)
b) USB-C to Micro-USB (0.6m / 1ft 11in)
c) Micro-USB to Micro-USB (0.6m / 1ft 11in)
Installation Kit
Quickstart Guides
patch

ATTENTION: This type of product is recommended only for expert users.
Softair Games is not responsible for damages caused by incorrect
installing / using.
