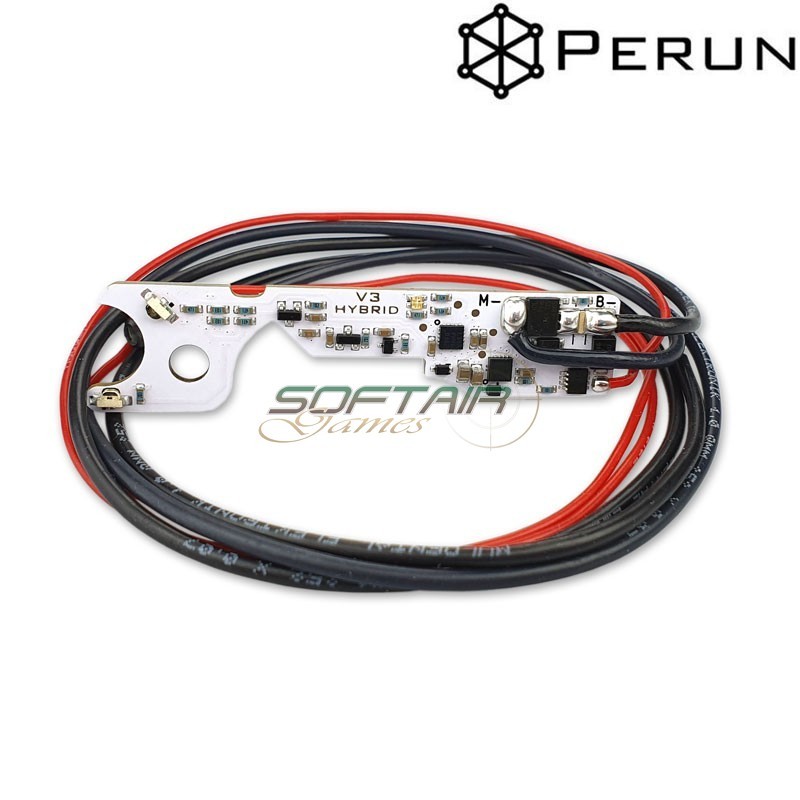

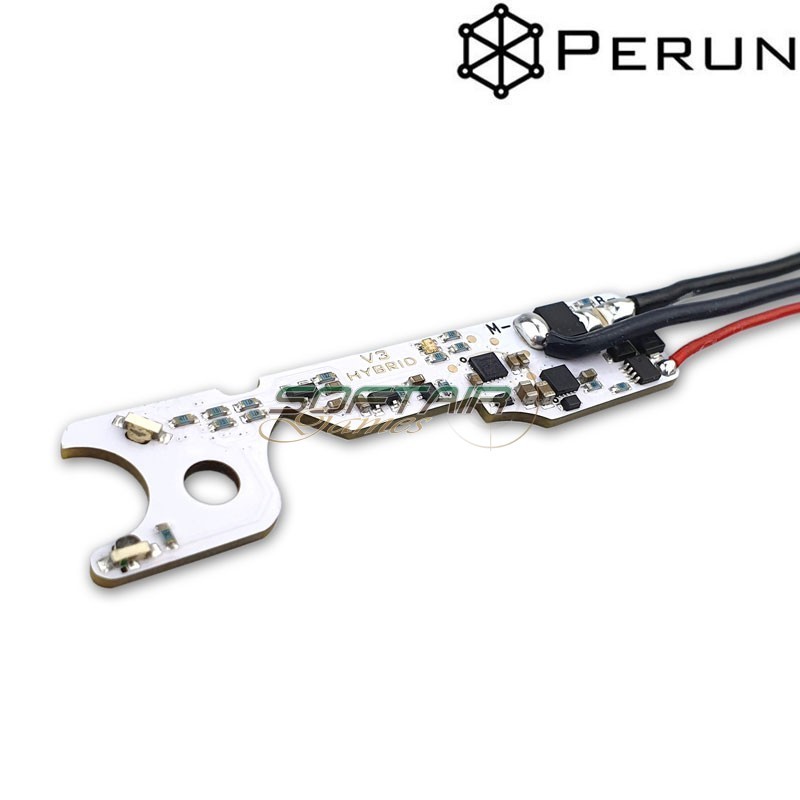

Control unit V.3 HYBRID UNIVERSAL wiring Perun (pn-hb-v3-uw)

BRAND PERUN

Perun V3 Hybrid replaces mechanical contacts in your airsoft replica or gel blaster and provides lots of useful features. Optical and magnetic sensors allow to eliminate many moving parts that are prone to damage, thus increasing the reliability. Adaptive trigger control allows switching from a very short trigger travel to a long one even in the field, with almost any trigger, including stock ones.

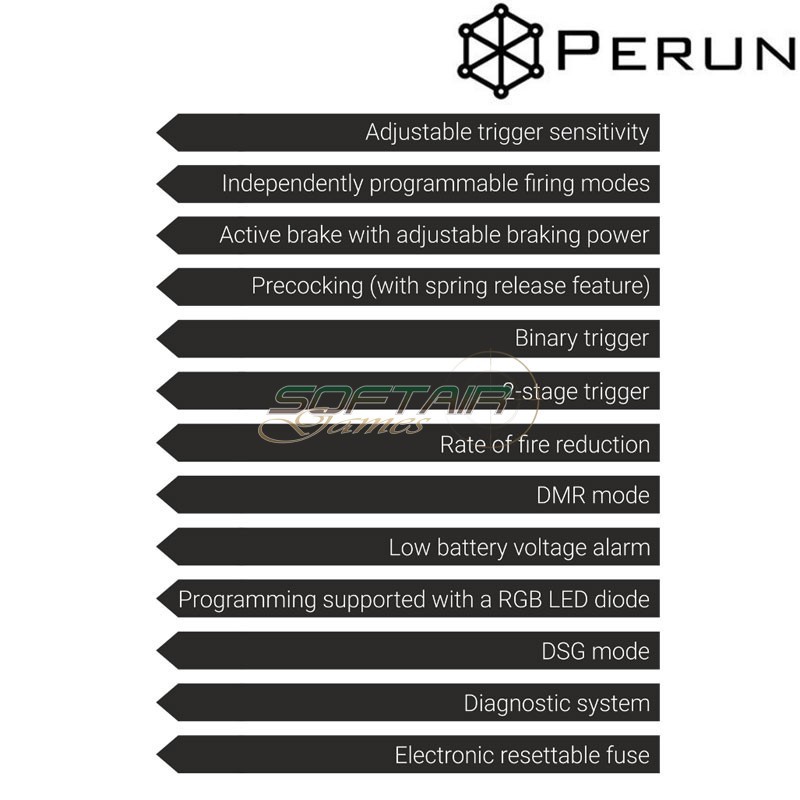

- Adjustable trigger sensitivity
The trigger can be set to 5 sensitivity levels, ranging from very short pull needed to fire a shot, to a very long one. No modification to the trigger or the gearbox is needed and the trigger sensitivity change is possible even in the field.
- Independently programmed firing modes
Program the firing modes any way you like, setting safe, semi, burst or auto on both selector positions.
- Active brake
Active brake stops the motor after each shot preventing spring compression or in case of replicas with high rate of fire, overspin (double shot problem).
- Precocking
Fast trigger response can be a matter of victory or defeat, especially in CQB situations. With precocking enabled, piston will remain in rear position after each shot with the spring already compressed, ensuring that next shot will be fired immediately after you pull the trigger. To release the spring after using precocking, pull the trigger and hold it for 2 seconds, after which a second shot will be fired, this time with no precocking and fully braked.
- 2-stage trigger
- Binary trigger
- Rate of fire reduction
- DMR mode
- Low battery voltage alarm
- DSG
- Diagnostic system
- Electronic fuse

Programming of all the settings is done solely by using quick and easily memorable sequences of fire selector switching and trigger pulls supported by sound signals and multicolor LED diode. That allows changing the settings in any moment, in a matter of seconds, even under enemy fire. All settings are set independently for each selector position, so you can program the mosfet exactly the way you want, for example semi on semi and binary trigger on auto.
Perun V3 Hybrid works without problems with any battery from 7V do 17V. It can also be used with most extreme setups.

Works without the need for any modification with most V3 gearboxes in Tokyo Marui standard. For details and exceptions please refer to the manual.
