Mosfet Warfet 1.1 Gate (gate-waf)

BRAND GATE

WARFET is GATE’s most advanced AEG Control System. It has 20 functions and
almost 6 million possible configurations. The outstanding Tactical Programming Card
provides you with very easy access to the AEG Controller settings. Thanks to the
PRE-COCKING and SMART TRIGGER functions, you can achieve a trigger response
similar to a real gun. The Programmable Burst (1-5 rounds) enables you to fire a
pre-determined number of BBs, which is very useful in MILSLIM and for using low-caps.
Another function is ROF Control, which allows you to reduce ROF, so you can use
strong LiPo batteries, and still have ROF just like in a real rifle. If your AEG becomes
jammed, the SMART FUSE protects the battery and the motor against damage. It also
prevents deep battery drain. Moreover, with WARFET you get: MOSFET, ON/OFF
ACTIVE BRAKE, BUILT-IN SELF TEST, DEBOUNCING, and more. Many useful
functions, great electrical specifications and conformal coating (military specifications:
MIL-V-173C) make the AEG Control System able to meet the needs of most
experienced airsoft players.

Features:
User-friendly configuration via the Tactical Programming Card
Sturdy and super-small size AEG Controller
Compatibility with the strongest AEG replicas and batteries
(ready to work with LiPo 14.8V, 5000 mAh, 60C)
Tested with car batteries
Super-easy installation - thanks to the Mini-Tamiya adapters,
you can connect WARFET to the original (stock) wiring
It can work with most built-in MOSFETs
With stock wiring, WARFET reduces melting switch assemblies
In hardwired installation, WARFET draws the energy from the battery directly
to the motor, bypassing the mechanical trigger contacts
Resistant to atmospheric conditions (military specifications: MIL-V-173C)
Deep-drain protection for 7.4V, 11.1V, 14.8V LiPoly and 9.6V, 12.8V LiFePO4
Improves battery life, ROF, spring life and gearbox reliability

AEG Controller parameters:
Wide range of supply voltage: 3-17V
Protection against short-circuits: up to 1000A
Incredibly low current consumption on stand-by: 0,2mA
Ultra-low resistance: 2mΩ
Dimensions: 56x20x9mm
Weight: 9,4g

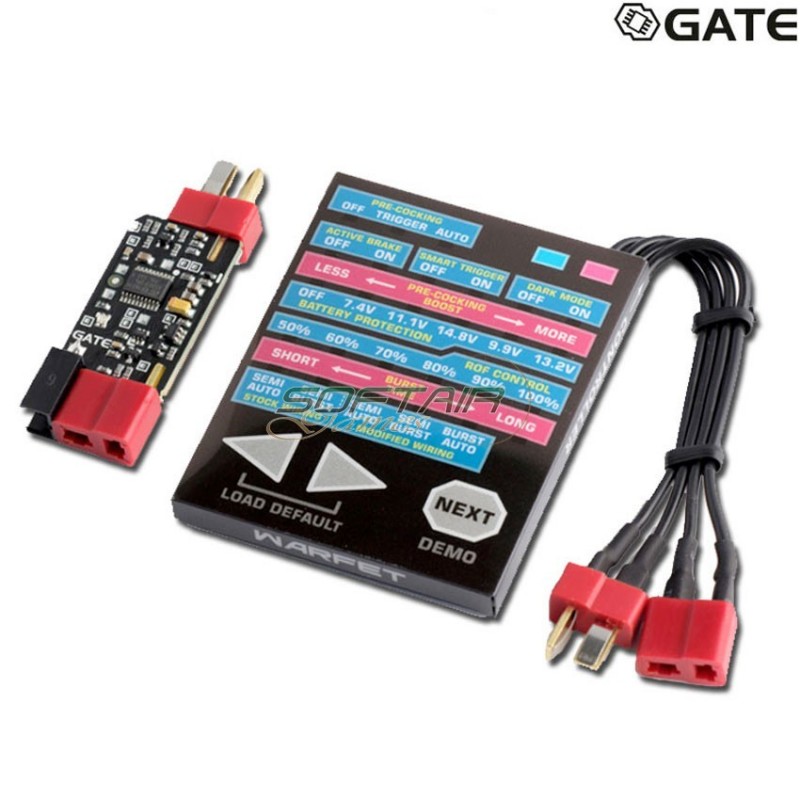

Tactical Programming Card
The outstanding Tactical Programming Card provides you with very easy access to the
AEG Controller settings. All you need to do is to connect the Tactical Programming
Card between the battery and the Controller. A big advantage is that there is no need to
use any additional wires. The AEG Controller can be fitted out of view in your AEG, and
you still have easy access to its settings. The Tactical Programming Card
communicates with the AEG Controller and displays the most recently saved settings.
You can simply change them using three buttons.

Tactical Programming Card parameters:
Supply voltage: 5-17V
Number of LEDs: 29
Number of buttons: 3
Dimensions: 67x53x7mm
Weight: 27,3g

Functions:

TACTICAL PROGRAMMING CARD

The outstanding Tactical Programming Card provides you with very easy access to the
AEG Controller settings. All you need to do is connect the Tactical Programming Card
between the battery and the Controller.

PRE-COCKING

Victory in the game is often a matter of fractions of seconds. Thanks to the
PRE-COCKING, you gain a trigger reaction similar to a real gun. It allows for initial
spring compression, which speeds up the trigger response significantly. You can set the
time of PRE-COCKING using the Tactical Programming Card. There are two
PRE-COCKING MODES:
1)  AUTO MODE – the spring is automatically compressed after each shot,
2)  TRIGGER MODE – the first trigger action compresses the spring, and the second
trigger action fires the shot.
Please note: using PRE-COCKING increases wear and tear on the gearbox.
PRE-COCKING is designed for SEMI mode.
In the AUTO mode, it can result in blank shots.

PLUG&PLAY

Super-easy installation, just plug and play. No soldering required. All you need to do is
connect the battery and the rifle to the AEG Controller.

PROGRAMMABLE BURST

The burst enables you to shoot a pre-determined number of BBs (1-5 rounds), which is
very useful in MILSLIM and when using low-caps. You can transform AUTO MODE to
BURST MODE or SEMI MODE to BURST MODE*. The Tactical Programming Card
allows you to set the burst time. The AEG Controller automatically corrects the burst
time according to the voltage level of the battery.
*SEMI to BURST in modified installations only.

CONFIGURABLE FIRE SELECTOR

The function gives you the option to program your fire selector. There are five operating
modes:
-    STOCK WIRING SEMI/AUTO
-    STOCK WIRING SEMI/BURST
-    MODIFIED WIRING SEMI/AUTO
-    MODIFIED WIRING SEMI/BURST
-    MODIFIED WIRING BURST/AUTO

RATE OF FIRE CONTROL

It enables lossless reduction of the rifle’s rate of fire, so you can use strong LiPo
batteries, and still have ROF like in a real gun.

SMART TRIGGER

We know how vital the fast trigger response is during combat. This is why we have
developed the Smart Trigger function. It enables you to achieve a faster trigger
response. It works with the ROF Control system. During the first shot, the
microprocessor sets the ROF Control to 100%. After the first shot, it switches to a
previously programmed value (e.g. 50%). As a consequence, the first shot is fired at a
full rate of fire, and subsequent shots at a reduced ROF. The best results can be
achieved by using a battery with a higher than standard voltage. For example, if you use
a 7.4V battery, you can replace it with 11.1V. In this way, you will achieve a faster trigger
response with the same rate of fire as with a standard battery. The Smart Trigger is
most effective when the Burst time is set at 3 rounds.

BATTERY PROTECTION

Protection against Over-Discharge of the Battery Modern LiPo and LiFe batteries are
very sensitive to over-discharge. If you do not want to damage the battery and you care
about its service life, this protection is indispensable. The microprocessor monitors the
battery voltage constantly. When the voltage drops down to a critical level, the Controller
will not allow firing.

SMART FUSE

The new AEG Controller should never let you down on the battlefield. It is the best
electronic fuse. The AEG Controller has a true current sensor. A combination of current,
voltage and temperature measurements makes your AEG installation highly reliable. If
your rifle becomes jammed, the SMART FUSE protects motor and battery against
damage. Overheating, overloading or short-circuiting of the electrical system should not
damage the Controller.

ON/OFF ACTIVE BRAKE

The Controller provides you with the opportunity to decide if you want to use the Active
Brake function. If you do not need this, you can turn it off easily. It will lead to improving
the lifespan of your motor.

ACTIVE BRAKE

Do you care about realism? Would you like to increase the life of the gearbox? Does
your rifle have such a high rate of fire that you are not able to make a single shot? The
Active Brake sorts things out. In SEMI Mode, the brake does not allow for compressing
a piston after a shot. The piston will stop in the front position which eliminates
unnecessary stresses, increasing the service life of the gearbox and its parts. This is
important, especially with an AEG power upgrade. After releasing the trigger, the rifle
immediately stops firing. So, you gain more realism and, additionally, you do not waste
your precious ammunition.

MOSFET

Do you want to achieve a higher rate of fire and faster trigger response? Are you
planning a power upgrade of your rifle? In that case, you need a MOSFET.
It targets the energy from the battery directly to the motor, bypassing the mechanical
trigger contacts. As a result, you gain a higher rate of fire of the rifle and a faster trigger
response, and the contacts are protected against burn out.

DEBOUNCING

This provides full compatibility with the micro-switches. It ensures full resistance to
contact bounce (vibration). You gain a bigger ROF, a faster trigger response and your
MOSFET is less prone to overheating.

BUILT-IN SELF-TEST

It allows you to quickly check whether the AEG Controller works properly. If you have
problems with your AEG, the BUILT-IN SELF-TEST allows you to check that the problem
is not caused by the Controller.

3RD GENERATION MOSFET

The advent of modern transistors and microcontroller has enabled us to create the
smallest and most reliable AEG Controller on the market.

DARK MODE

DARK MODE allows you to turn off the green LED which lights up when a gun is firing.
This function is especially useful during night games.

COATING

Thanks to its special conformal coating, it is resistant to atmospheric conditions
(Military Specification MIL-V-173C).

14.8V LI-PO READY

The system can be used with batteries up to 14.8V LI-PO. Minimum operating voltage
is 3V and maximum voltage is 17V.

HARDWIRED

In the case of a hardwired installation, the Controller draws the power from the battery
directly to the motor, bypassing the mechanical trigger contacts. This requires a
modification of the AEG installation.

MINI TAMIYA READY

Thanks to the Mini Tamiya Adapters included in kit, you will be able to smoothly connect
WARFET to your original installation.

PRINTED QUICKSTART

It makes easier starting your adventure with WARFET. The quickstart contains basic
information and hints.

Kit includes:
Tactical Programming Card
AEG Controller
Battery Mini Tamiya adapter
AEG Mini Tamiya adapter
Pair of Deans-T Connectors
Single Trigger Wire
Double Trigger Wire
Quickstart Guide
