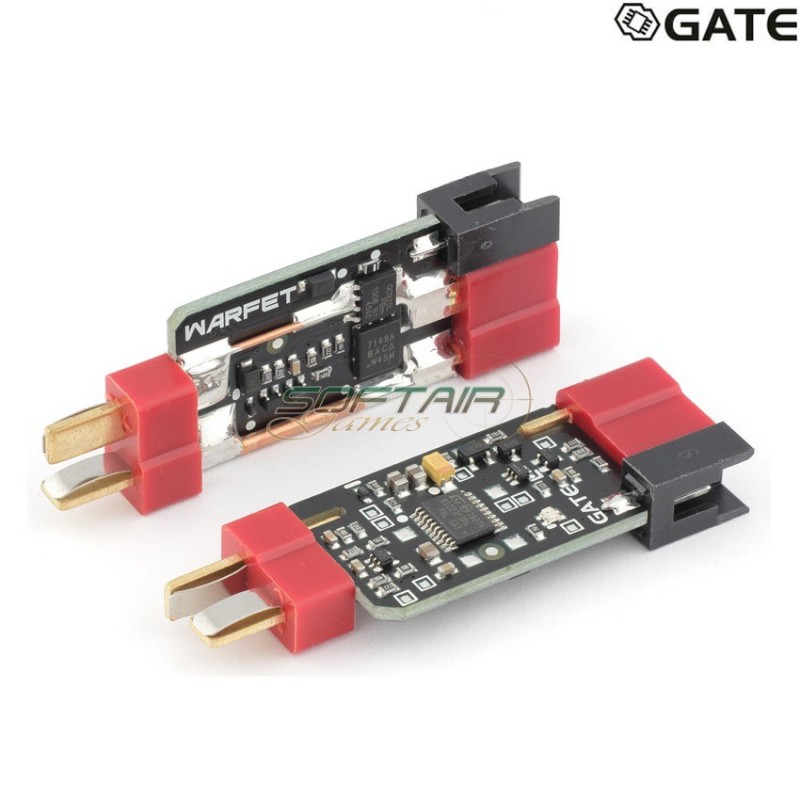

Warfet 1.1 Power Module Gate (gate-waf-pm)

BRAND GATE

WARFET 1.1 Power Module GATE.

WARFET is the most advanced AEG control system.

It has 20 functions and nearly 6 million possible configurations.

CONTENT:
- WARFET
- Adapters
- Connector kit Deans
- Cables single and double for the trigger signal contacts

Thanks to Pre-cocking and Smart Trigger functions, you'll get a reaction trigger almost
identical to the firearms. Programmable Burst allows you to shoot a number
predetermined dots (1-5 strokes), which is very useful in MILSLIM or with use of clips
Low cap. Another function, very useful is the regulation of the rate of fire. It allows
reduce the rate of fire of the replica so as to use high LiPo
voltage and still have an ROF as in real weapons. If replication is
locks, Smart Fuse protects the battery and motor against failure. It also avoids the
battery falls below its minimum safety voltage. EASY INSTALLATION -
PLUG & PLAY DOES NOT REQUIRE THE BRAZING.

WARFET Power Module - features:

Intuitive configuration via the programming card
WARFET Power Module robust and small
Compatibility with the best brands of AEG replicas and batteries (useful with
LiPo 14.8V, 5000 mAh, 60C)
Tested with car battery
Simple installation thanks to adapters Mini Tamiya
It can work with most of the MOSFET
WARFET is running on battery power directly from the engine, bypassing the trigger
mechanic
Weatherproof (military specifications: MIL-V-173C)
discharge protection for 7.4V, 11.1V, 14.8V LiPoly and 9.6V, 12.8V LiFePO4
It improves battery reliability, ROF, the spring of life and gears

WARFET Power Module - parameters:

Supply voltage: 3-17 V
Short-circuit protection up to 1000 A
Low power consumption in stand-by: 0.2mA
Low resistance: 2mΩ
Dimensions: 56x20x9mm
Weight: 9,4g

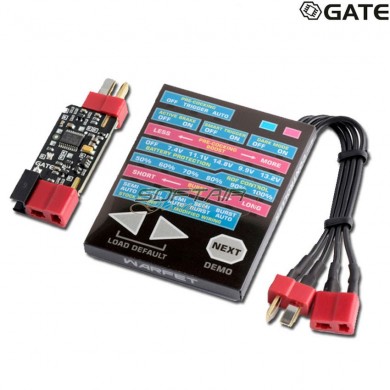

NOTE: We recommend the purchase together with the 1.1 Warfet AEG Control System, where there is the programming sheet! Useful to have the system on more Warfet AEG.
