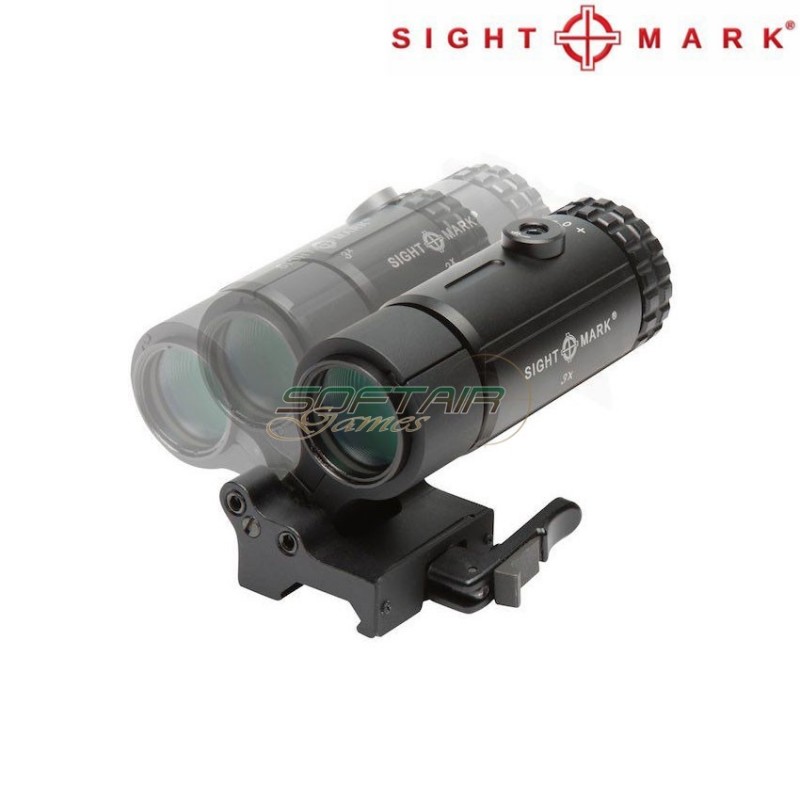

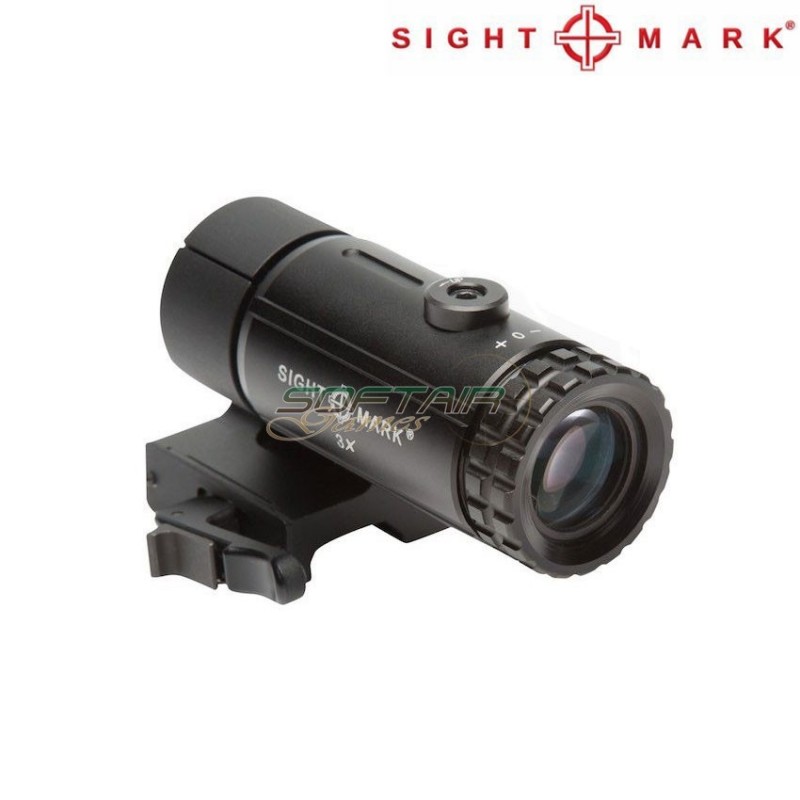

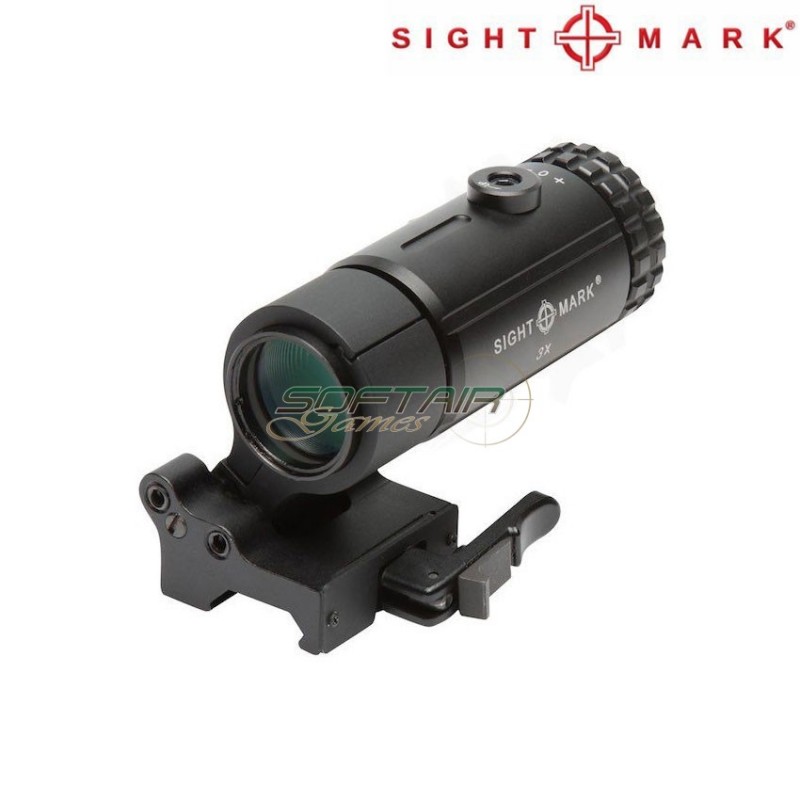

T-3 Magnifier with LQD Flip to Side Mount sightmark (sm-27595)

BRAND SIGHTMARK

Designed to mount directly behind a reflex sight or red dot, the versatile T-3 Magnifier allows a quick and easy way to magnify your sight picture by 3x and provides an absolute co-witness. A straight tube magnifier a full .8” shorter than the model it replaces, the T-3 features a streamlined, low drag design, preventing the magnifier from snagging on equipment in important situations. Ideal for engagements up to 100 yards, if a close-range shooting scenario calls for no magnification, simply use the T-3’s flip-to-side mount to rapidly transition between the optic systems. This durable magnifier is constructed of aluminum and provides improved brightness and resolution from fully multi-coated optics. External windage and elevation adjustments align the reticle to the center of the T-3’s point of view. EOTech® and Aimpoint® compatible, the locking quick detach mount found on the T-3 lets the magnifier be quickly removed. Sightmark T-3 Magnifiers include flip-to-side LQD mount, adjustment tools and manual.

Features:

Locking, quick detach mount for quick and easy removal
Flip-to-side mount provides rapid transition between optical systems
Fully multi-coated, scratch resistant
External windage/elevation adjustment for reticle alignment
Increases magnification of accompanying sights for greater engagement range
EOTech® and Aimpoint® compatible
Aluminum construction

Magnification     3x
Diameter, Objective Lens     23 mm
Diameter, Eyepiece     1.26/32 in/mm
Diameter, Exit Pupil     7.6 mm
Eye relief (in/mm)     2.25/57 in/mm
Field of view, m@100m     14.43
Field of view, ft@100yd     43.3
Diopter Adjustment     +3 to -3
Diameter, Tube     30 mm
Maximum Recoil     .308 Caliber
Shockproof     Yes
Fog Proof     No
IP Rating (waterproof)     IP55 - water resistant
Finish/Color     Matte black
Body Material     Aluminum
Lens Coating     Full Multi-coated
Mount Type     Picatinny
Operating temperature, F/C     -22 to 160 / -30 to 71 F/C
Length (in/mm)     4 / 103 in/mm
Width (in/mm)     2.6 / 66.2 in/mm
Height (in/mm)     1.67 / 42.5 in/mm
Weight, oz     10.6 oz.
