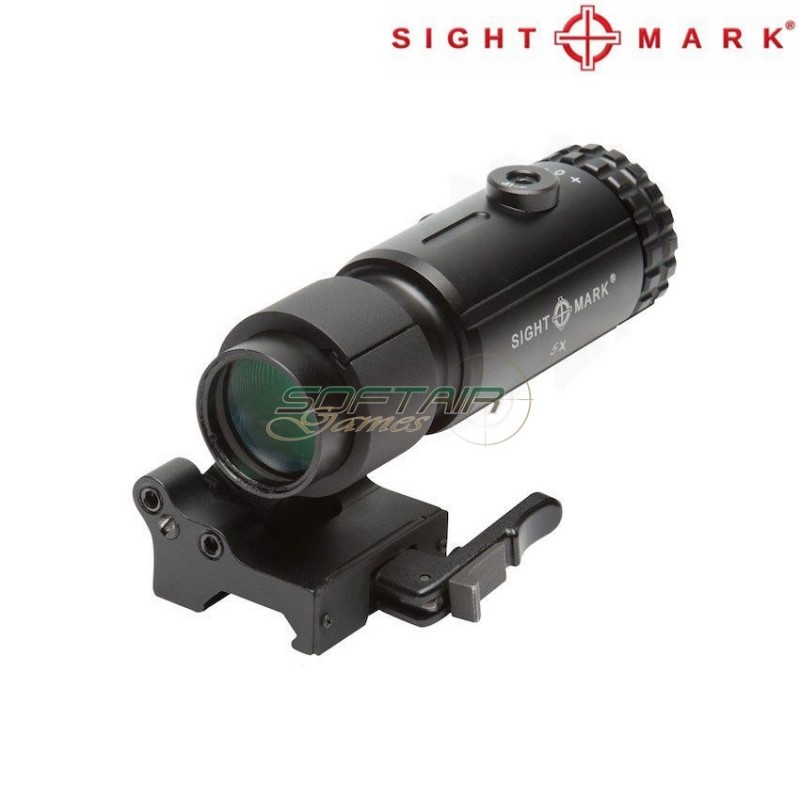

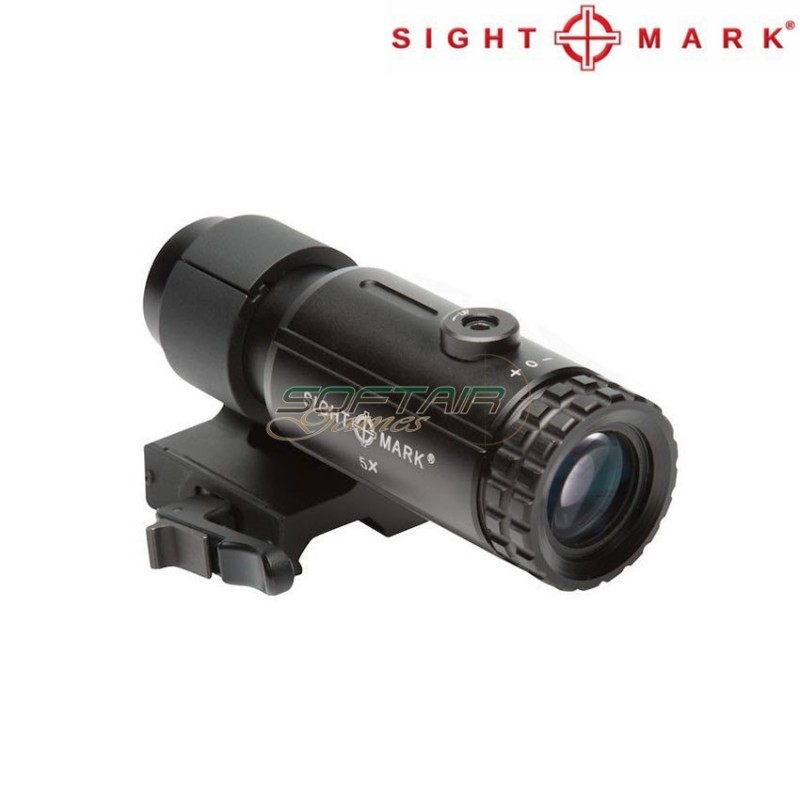

T-5 Magnifier with LQD Flip to Side Mount sightmark (sm-27596)

BRAND SIGHTMARK

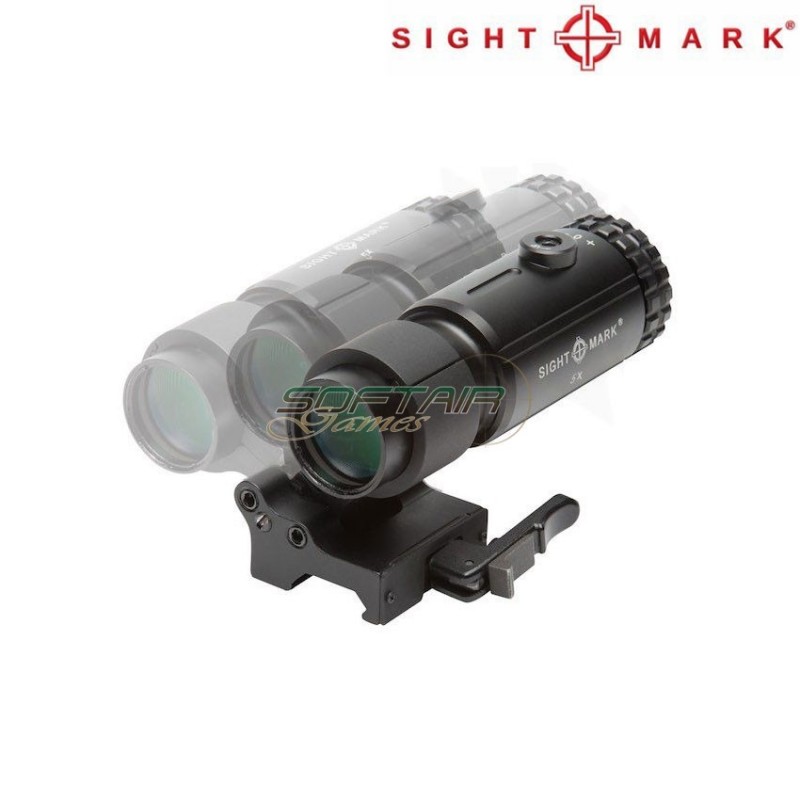

Built for shooting versatility, the Sightmark T-5 is a magnifier that mounts behind a reflex sight or red dot and provides an absolute co-witness. Instantly change the magnification of your close-range optic from 1x to 5x by using the T-5’s flip-to-side mount. The magnifier’s streamlined, low drag design prevents it from snagging on clothing and equipment and makes the T-5 .7” shorter than the magnifier it’s replacing. Ideal for stretching your AR engagements out to 200 yards, an included LQD mount allows for rapid attaching/detaching in intense shooting situations. The T-5’s aluminum construction is shockproof up to .308 caliber rifles and provides IP55 water resistant protection. Brightness and resolution are improved from fully multi-coated optics and external windage and elevation adjustments help shooters align the reticle of their red dot/reflex sight to the center of the magnifier’s point of view. The Sightmark T-5 includes flip-to-side LQD mount, adjustment tools and manual.

Features:

Locking, quick detach mount for quick and easy removal
External windage/elevation adjustment for reticle alignment
Absolute co-witness
Fully multi-coated, scratch resistant
5x magnification increases engagement to 200 yards
EOTech® and Aimpoint® compatible

Magnification     5x
Objective Lens     23 mm
Diameter, Eyepiece     1.26/32 in/mm
Diameter, Exit Pupil     4.6 mm
Eye relief (in/mm)     2.25/57 in/mm
Field of view, ft@100yd     29.6
Field of view, m@100m     9.8
Diopter Adjustment     +3 to -3
Diameter, Tube     30 mm
Maximum Recoil     .308 Caliber
Shockproof     Yes
Fog Proof     No
IP Rating (waterproof)     IP55 - water resistant
Finish/Color     Matte black
Body Material     Aluminum
Lens Coating     Full Multi-coated
Mount Type     Picatinny
Operating temperature, F/C     -22 to 160 / -30 to 71 F/C
Length (in/mm)     4.72 / 120 in/mm
Width (in/mm)     2.6 / 66.2 in/mm
Height (in/mm)     1.67 / 42.5 in/mm
