Silenced piston head aluminum airsoft parts (atp-hp-tich)

BRAND AIRSOFT PARTS

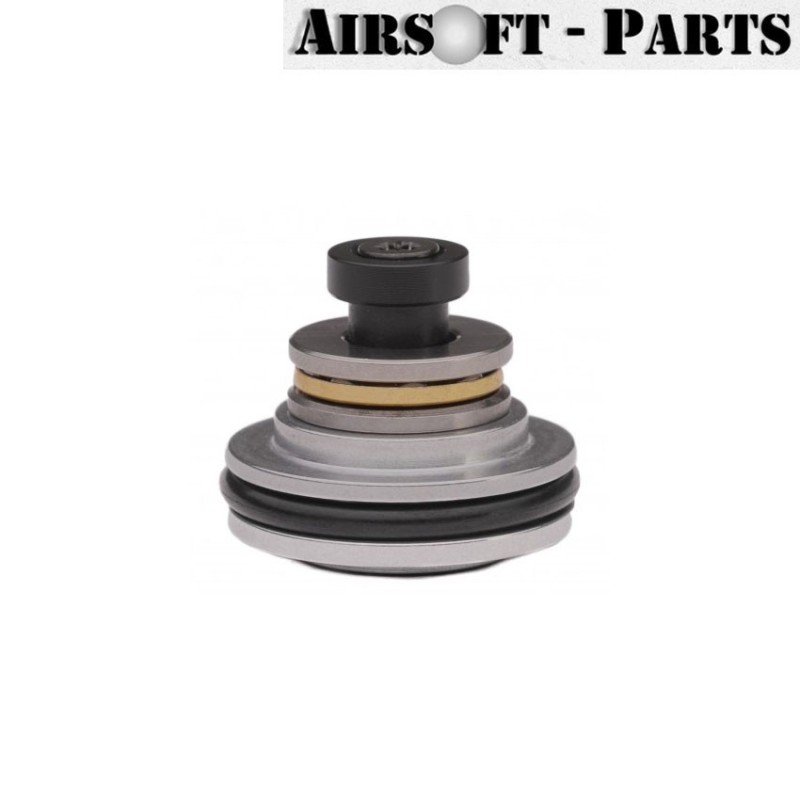

Silent Piston Head
Dimension     Standard
Material     EN AW 6012 T6
Maximum suitable spring     M150
Seal     1 pcs O-ring
Surface finishing     Polishing
Bearings     YES
Weight     11,6 g
Compatible with the gearbox     v.2, v.3

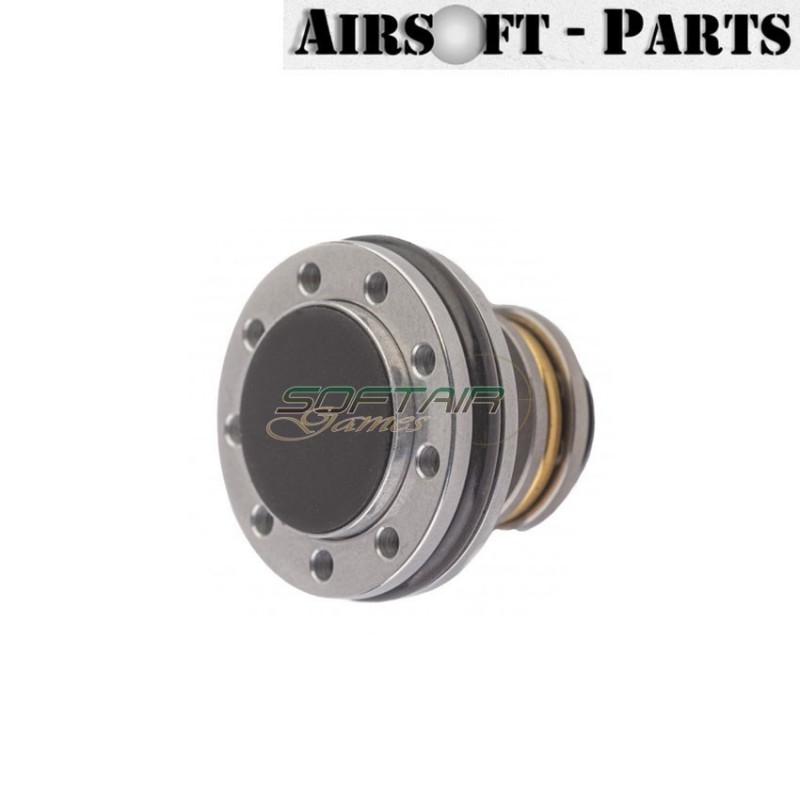

The silent piston head is made of duralumin EN AW 6012 T6 on the CNC machining centre. Nine holes are drilled on the front side.The air stream flows through these holes during compression thus expanding the O-ring which provides for better sealing of the space between the piston head and the cylinder.

The silent piston head is equipped with a pneumatic brake. The brake stops the air flow before the piston head hits the cylinder head. Closing the air flow creates an air cushion that ensures a damped impact of the piston head. This will significantly reduce noise and reduce the dynamic shocks transmitted to the gearbox.

Installation of the silent piston head requires expertise in the function of airsoft guns. Especially the AoE (Angle of Engagement) must be set correctly. This means that the AoE must be done with compressed air brake and 0.5 - 1 mm clearance between cylinder head and piston head.

Silent piston head can be combined with "Silent cylinder head" or "Cylinder head - CLASSIC".

For long life, we recommend using only for the following applications:

    DMR - Spring force up to M150, semi-auto shooting only
    DMR - Spring force up to M140, semi-auto or full-auto shooting with cadence up to 8 bb / s.
    Spring force up to M120, semi-auto shooting, or full-auto with cadence up to 15 bb / s.

The silent piston head is not suitable for weapons with high cadence.

Advantages:

    Pneumatic brake
    Perfect sealing
    Axial ball bearing for easy spring rotation
    Sleek surface
    Plastic nut that reduces total weight
