STATUS matt dark earth gate (gate-sta-1a-dm)

BRAND GATE

Get full data in real-time directly from the STATUS screen to reinforce your tactical decisions and get the confidence and the advantage necessary to win.
No more surprises with an empty magazine or a discharged battery.
Take aim with precision thanks to the replica’s angle indicator.
Just connect your TITAN or ASTER Electronic Trigger Units via Blu-Link and use complete data as well as dozens of functions at your fingertips.

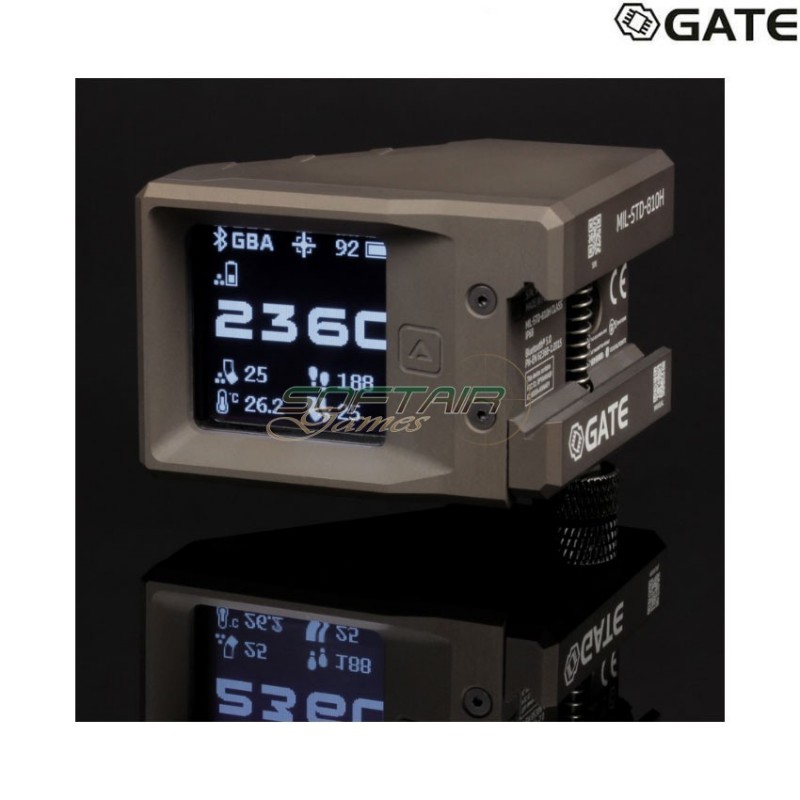

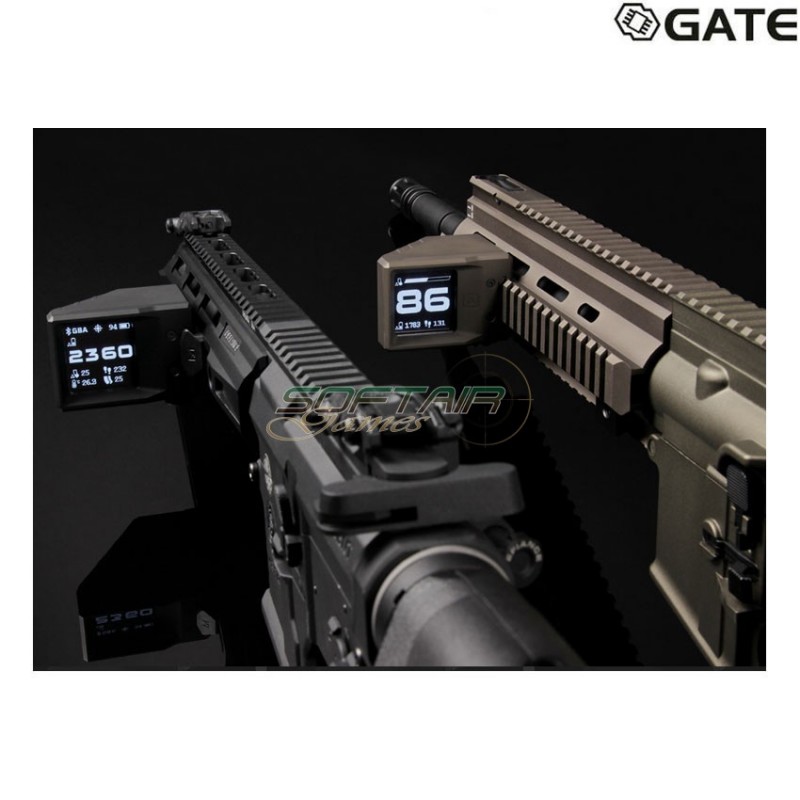

This sophisticated device mounted directly to standard RIS rails is equipped with an OLED display protected by polycarbonate glass covered with 3mk FlexibleGlass™.
Together with its water and dust resistant CNC aircraft grade aluminum body IP68 certified and meeting MIL-STD-810H* standards, it's designed to operate even in challenging conditions.

STATUS is compatible with:

    TITAN V2
    TITAN V3
    TITAN V2 NGRS
    ASTER V2
    ASTER V3
    Blu-Link
    BASIC firmware
    ADVANCED firmware
    EXPERT firmware

STATUS Computer is not compatible with GCS PC/macOS 2.x and Basic MOSFETs.

What makes STATUS so special?

    Bluetooth® technology for connecting with the GATE Ecosystem
    Ultra-high resistance for BB impact***
    IP68 Water and dust resistant
    MIL-STD-810H Class*
    OLED display
    3mk protective FlexibleGlass™ 7h hardness
    Built-in USB-C chargeable LiPo battery
    3-axis accelerometer and 3-axis gyroscope
    Machine learning core
    Buttons designed for use in gloves
    CNC 7075 aircraft grade aluminum body
    Ready to operate even in challenging conditions

Durability

In order to give you the highest quality of the STATUS Tactical Computer, we conducted a series of tests proving its durability.
Besides all the tests included in IP68 and MIL-STD-810H* standards, we fired several shots at the computer from every side with 2 J energy and 0.33 g BBs from 1 m / ~ 3 ft distance.
We also rolled over it with a military grade Hummer, froze it in -20°C and conducted a specialized test for solar radiation resistance.
For 10 days and nights STATUS was exposed to 1100 W/m2 luminous emission intensity with a surface temperature around  54°C.
But that's not all, we have equipped STATUS with innovative 3mk hybrid FlexibleGlass ™ which is a combination of the best properties of glass and protective film for high flexibility and resistance to scratches at 7H hardness.
MIL-STD-810H Class.
IP68 Water and dust resistant.
***Tested on: 0,33g BBs, energy 2J, distance 1 m/~3 ft

Functions of STATUS connected with Blu-Link and GATE ETU:
Remaining BB Counter
AEG Battery Charge Level
Estimated Number of Shots Left on the Battery
Replica’s Angle Indicator
Bolt-catch Reset
Temperature Reading
Magazine Counter
Distance – Pedometer & Calories Burnt Indicator
Adaptive Display Brightness
Fire Mode Notification
Mission/Respawn Timer**
Four Customizable Dashboards

Functions of STATUS stand-alone*:
Replica’s Angle Indicator
Temperature
Magazine Counter
Distance – Pedometer & Calories Burnt Indicator
Adaptive Display Brightness
Mission/Respawn Timer**
Four Customizable Dashboards

Specification:
Display: OLED 128 x 128 px MONO
Connectivity: Bluetooth® 5.0 Low Energy
Nominal Battery Capacity: 850 mAh
Dimensions (Length x Width x Thickness): 47 mm x 60 mm x 54 mm
Finished Product Weight: 180 g
Operating Temperature Range: min. -20° C, max. +60° C
Relative Humidity: ≤ 100%
